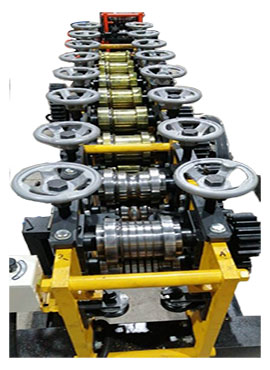

8 Roller Triple Design Rolling Shutter Strip Making Machine
| Design : | Round, Box Design and Groove/ Line |
|---|---|
| Automatic Grade : | Semi-Automatic |
| Production Capacity : | 3 Ton/12 Hours |
| Brand : | Digambar |
| Roller Material : | OHNS Die steel |
| Gear Material : | EN19 |
| Power Consumption : | 5 HP |
| Material Width : | 100,114,121,127 mm (any one) |
| Power Source : | Electric |
| Working Speed : | 30 rpm |
| M/C Body Material : | MS |
| Weight : | 1400Kg |
| Application : | To make rolling shutter strip. |
| No. of Forming Station : | 8 |
| Job Thickness : | 8 Job Thickness : 0.6 to 1.2 mm with D Coiler Stand And Cutting Stand |
| Design : | Plain, Half Round, and Lining |
|---|---|
| Automatic Grade : | Semi-Automatic |
| Production Capacity : | 3 Ton/12 Hours |
| Brand : | Digambar |
| Roller Material : | OHNS Die steel |
| Gear Material : | N19 |
| Power Consumption : | 5 HP |
| Material Width : | 100,114,121,127 mm (any one) |
| Power Source : | Electric |
| Working Speed : | 30 rpm 3 Phase Power Supply |
| M/C Body Material : | MS |
| Weight : | 1200Kg |
| Application : | To make rolling shutter strip. |
| No. of Forming Station : | 7 |
| Job Thickness : | 0.6 to 1.2 mm with D Coiler Stand And Cutting Stand |
8 Roller Triple Design Rolling Shutter Strip Making Machine (Automatic)
| Design : | Round, Box Design |
|---|---|
| Automatic Grade : | Fully-Automatic |
| Production Capacity : | 3 Ton/12 Hours |
| Brand : | Digambar |
| Power Consumption : | 5 HP |
| Material Width : | 150, 155, 168, 180 mm (any one) |
| Power Source : | Electric |
| Working Speed : | 30 rpm 3 Phase Power Supply |
| M/C Body Material : | MS |
| Weight : | 1400Kg |
| Application : | To make rolling shutter strip. |
| No. of Forming Station : | 8 |
| Job Thickness : | 0.6 to 1.2 mm With D Coiler Stand and PLC control 2.5 HP motor with hydraulic pump and cylinder |
